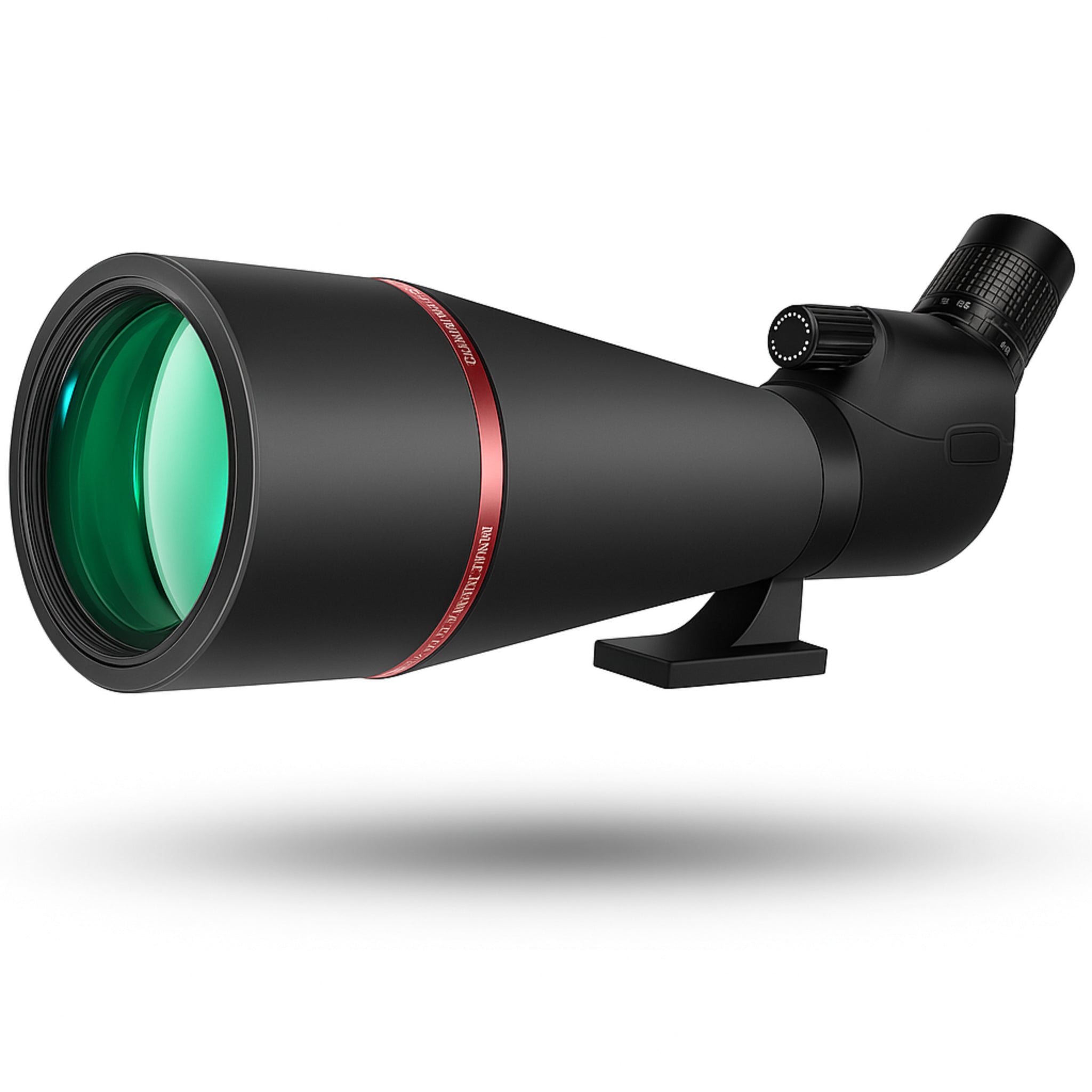

HelioForge Redline Pro 85 ED Angled Spotting Scope

The HelioForge Redline Pro 85 ED Angled Spotting Scope is engineered for elite birders, hunters, and range shooters who need bright, edge-to-edge clarity. A rugged, rubber-armored magnesium alloy body houses an 85 mm ED objective with full multi-coatings, while the angled eyepiece and smooth pan/tilt tabletop tripod deliver comfortable, stable viewing for hours.

Specifications

• Material: Magnesium alloy chassis with rubber armor; nitrogen-purged & O-ring sealed

• Dimensions: 420 mm (L) x 100 mm (W) x 160 mm (H)

• Optics: 85 mm ED objective, fully multi-coated lenses, BAK-4 prisms with dielectric & phase coatings

• Magnification: 20–60x zoom eyepiece, 45° angled

• Weight & Mount: 1.75 kg; rotating collar with Arca-compatible foot; aluminum tabletop tripod included

Features

• APO-Corrected ED Glass: Vivid color fidelity with minimal chromatic aberration

• Dual-Speed Focus: Fast coarse knob plus micro fine-tuning for tack-sharp images

• Weather Sealing: Waterproof and fogproof for reliable use in rain, dust, and temperature swings

• Rotating Tripod Collar: Rapid orientation changes without moving the tripod legs

• Long Eye Relief: Twist-up eyecup for comfortable viewing with or without glasses

• Redline Accent Ring: Distinctive tactile grip near the objective for confident handling

Maintenance

• Daily: Use a blower and microfiber cloth to remove dust; cap lenses between uses

• Weekly: Check tripod locks and collar tension; wipe armor with damp cloth

• Annually: Inspect seals, refresh desiccant, and verify optical alignment

Warranty

• Optical Body & Mechanics: 10 years

• Lenses & Coatings: 5 years
